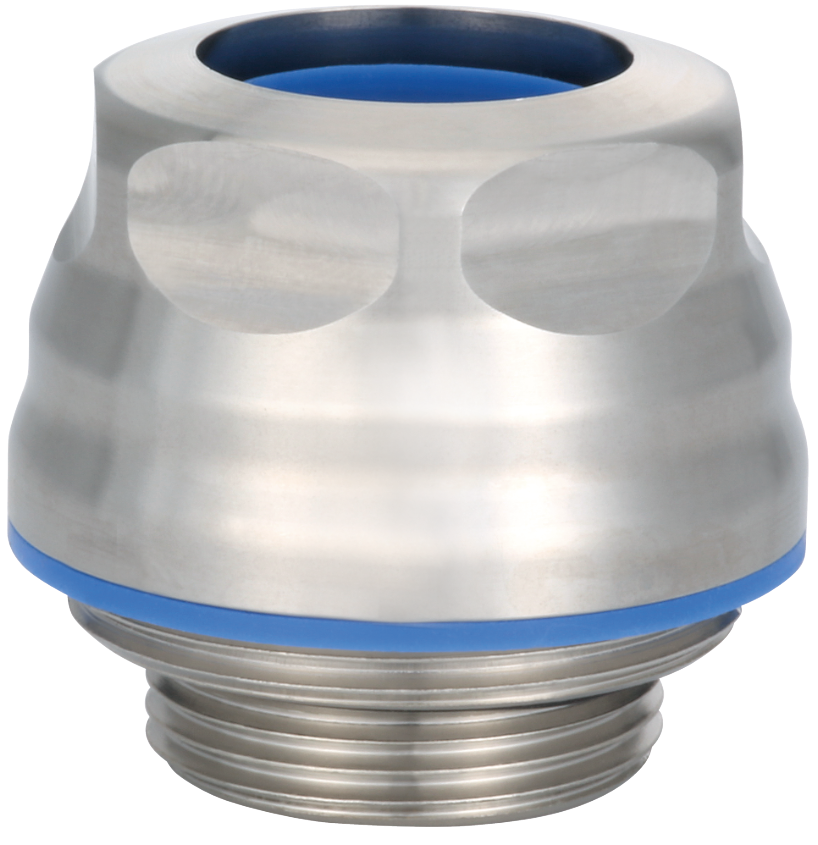

1.740.2003.51 HSK-INOX-HD-Pro Metric
The HSK-INOX Hygienic-Design-Pro cable gland is suitable for use in all areas in which the adherence of microorganisms and dirt must be prevented, for example in the pharmaceutical, food and chemical industries as well as in biotechnology and clean room technology.
|
Material
|
INOX 1.4404
|
|
Seal
|
VMQ (silicone)
|
|
Protection class
|
IP 66,
IP68 - 10bar/30min,
IP 69 K
|
|
Temperature range
|
-40°C to +120°C
|
|
Variant
|
Metric
|
|

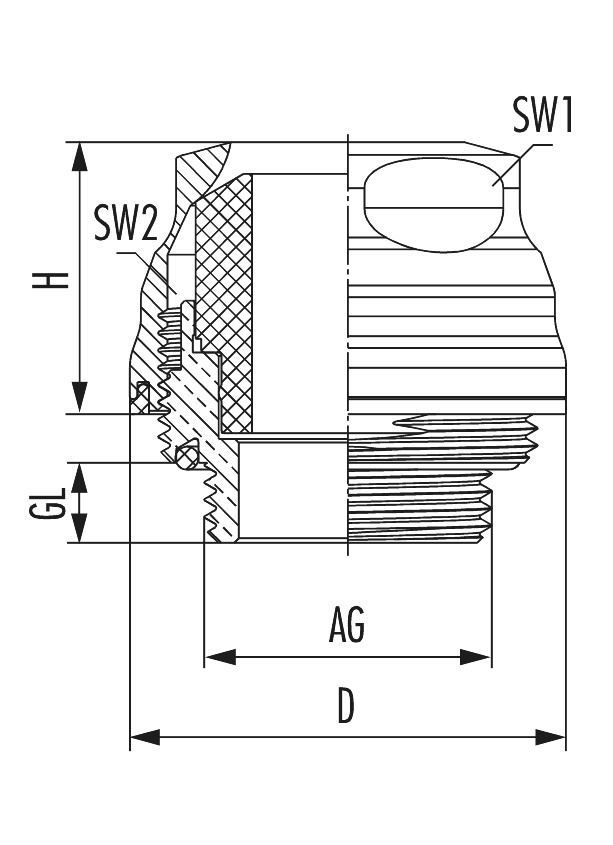

External thread (AG)
|
M20 x 1,5
|
|
Cable diameter
|
9 – 12 mm
|
|
Thread length (GL)
|
6 mm
|
|
Height (H)
|
22.5 mm
|
|
D
|
33 mm
|
|
Wrench size (SW1/SW2)
|
24/27 mm
|
|
Tightening torque
|
30 Nm
|
|
Product group
|
Hygenic Design
|
- EMC connection integrated
- VDMA Riboflavin cleaning test passed
