| Material | Nickel-plated brass |
| Clamping insert | Polyamide |
| Seal | NBR |
| Protection class |
IP 68, IP68 - 10bar/30min, IP 69 K |
| Temperature range | -40°C to +100°C |
| Variant | Metric |
| External thread (AG) | M25 |
| Cable diameter | 9 – 16 mm |

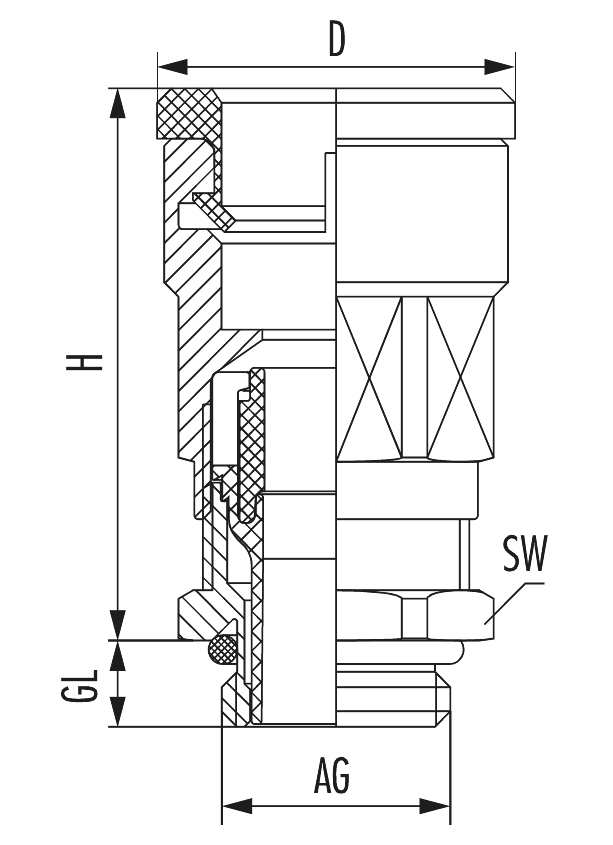

| D | 30 mm |
| Thread length (GL) | 7 mm |
| Height (H) | 44.5 mm |
| Wrench size (SW) | 30 mm |
| Suitable for polyamide hose DN | 17 |
