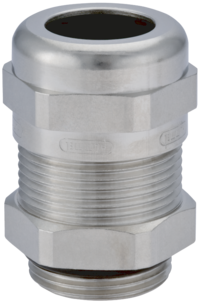

1.631.2900.01 HSK-M-EMC-D PG

EMC-compatible cable gland for carrying through the braided shield
Material Nickel-plated brass
Clamping insert Metallized polyamide
Seal NBR
Material o-ring NBR
Protection class IP68 - 10bar/30min,
IP 69 K
Type Rating by 4,
4X,
6,
UL 50E
Temperature range -40°C to +100°C
Variant PG
External thread (AG) PG 29
Cable diameter 18 – 25 mm
Thread length (GL) 8 mm
Height (H) 43 mm
Wrench size (SW1/SW2) 40/40 mm
Tightening torque 17.5 Nm
Product group EMC
  • Other sealing material e.g. Silicone on request
