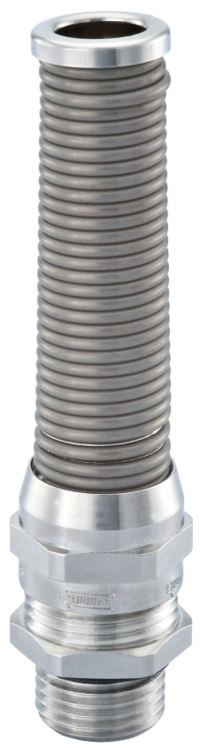

1.624.1300.01 HSK-M-Flex-EMC PG

EMC-compatible cable gland with bend protection
Material Nickel-plated brass
Steel spring INOX 1.4310
Clamping insert Polyamide V0 according to UL94
Seal NBR
Material o-ring NBR
Protection class IP68 - 10bar/30min,
IP 69 K
Type Rating by 4,
4X,
6,
UL 50E
Temperature range -40°C to +100°C
Variant PG
External thread (AG) PG 13,5
Cable diameter 6 – 12 mm
d 12.3 mm
Thread length (GL) 6.5 mm
Height (H) 88 mm
Wrench size (SW1/SW2) 22/22 mm
Tightening torque 8 Nm
Product group EMC
  • Also available in PVDF (-35°C to +150°C)
  • Other sealing material e.g. Silicone on request
