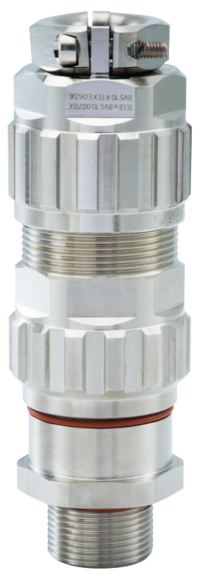

1.6Z5.1603.50 EXIOS +MZ nickel-plated brass Metric

These cable glands are designed for use in "Hazardous Areas". The high-end design EXIOS already has certification in accordance with the most recent, tightened-up IECEx and ATEX standards.
Material Nickel-plated brass
Seal VMQ (silicone)
Material o-ring VMQ (silicone)
Clamping insert Polyamide 6
Armour Metallic armour or screen
Protection class IP 66,
IP 67,
IP 68 - 5bar/30min
Ex-protection level Class I Div 2 Groups A,B,C,D,
Class II Div 1 Groups E,F,G,
II 1D Ex ta IIIC Da
Temperature range -60°C to +105°C
Variant Metric
External thread (AG) M16 x 1,5
Size 20-1
A1 6 – 11 mm
A2 3 – 8,1 mm
Thread length (GL) 16 mm
Height (H) 79 mm
Wrench size (SW1/SW2) 22/22 mm
D 27 mm
Armouring clamping ring 1 0 – 0,7 mm
Armouring clamping ring 2 0,7 – 1,25 mm
Tightening torque 8 Nm
Product group Ex d,
Ex e
