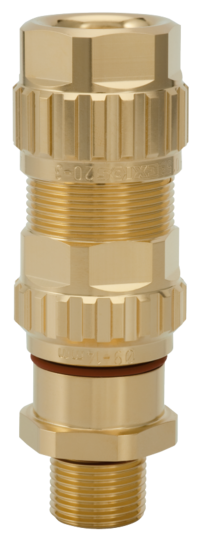

1.605.5200.70 EXIOS +Standard brass blank NPT

These cable glands are designed for use in "Hazardous Areas". The high-end design EXIOS already has certification in accordance with the most recent, tightened-up IECEx and ATEX standards.
Material Brass
Seal VMQ (silicone)
Material o-ring VMQ (silicone)
Clamping insert Polyamide 6
Armour Metallic armour or screen
Protection class IP 66,
IP 67,
IP 68 - 5bar/30min
Ex-protection level Class I Div 2 Groups A,B,C,D,
Class II Div 1 Groups E,F,G,
II 1D Ex ta IIIC Da
Temperature range -60°C to +105°C
Variant NPT
External thread (AG) NPT 2 1/2"
Size 63
A1 46 – 65,3 mm
A2 39,9 – 56,3 mm
Thread length (GL) 40 mm
Height (H) 144.5 mm
Wrench size (SW1/SW2) 80/80 mm
D 90 mm
Armouring clamping ring 1 0 – 1 mm
Armouring clamping ring 2 1,5 – 2,5 mm
Armouring clamping ring 3 (optional) 1 – 2 mm
Tightening torque 65 Nm
Product group Ex d,
Ex e
