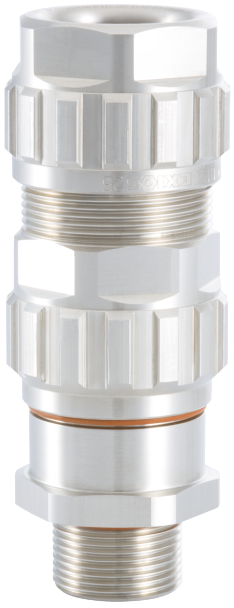

EXIOS +Standard nickel-plated brass

These cable glands are designed for use in "Hazardous Areas". The high-end design EXIOS already has certification in accordance with the most recent, tightened-up IECEx and ATEX standards.
Material Nickel-plated brass
Seal VMQ (silicone)
Material o-ring VMQ (silicone)
Clamping insert Polyamide 6
Armour Metallic armour or screen
Protection class IP 66,
IP 67,
IP 68 - 5bar/30min
Ex-protection level Class I Div 2 Groups A,B,C,D,
Class II Div 1 Groups E,F,G,
II 1D Ex ta IIIC Da
Temperature range -60°C to +105°C
Variant NPT,
Metric
Certificates
  • RoHS RoHS
  • CE CE
  • DNV DNV
  • KTL KTL
  • ABS ABS
  • ATEX ATEX
  • CSA CSA
  • IECEx IECEx
